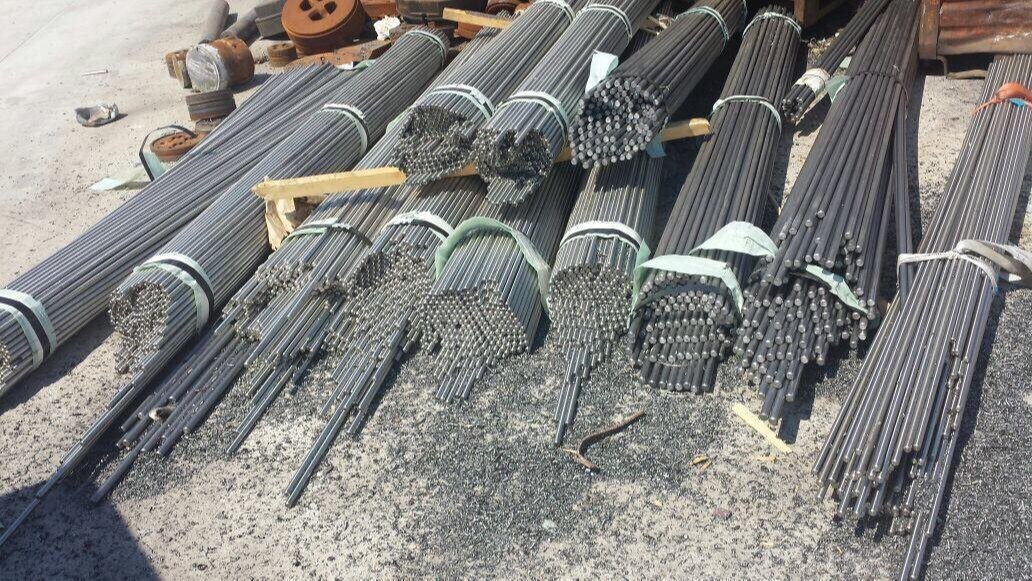

An Overview of AMS 6257 (4340M) Bar & Forging and its Applications

Introduction to AMS 6257 (4340M)

AMS 6257, also known as 4340M, is a specific alloy steel grade that conforms to the standards set by the Aerospace Material Specification (AMS) committee. It is a high-strength, low-alloy (HSLA) steel widely used in aerospace and other industries where exceptional mechanical properties and toughness are required. The designation “4340” refers to the chemical composition of the steel, which includes nickel, chromium, and molybdenum. The “M” in AMS 6257 signifies that this material meets rigorous aerospace quality and performance standards.

4340M is valued for its excellent strength, fatigue resistance, and impact toughness, making it suitable for critical aerospace components like landing gear, drive shafts, and structural parts. Its versatility extends to applications in the automotive, defense, and oil and gas industries, where demanding performance characteristics are essential.

The Chemistry and Composition of AMS 6257

AMS 6257 (4340M) has a carefully engineered chemical composition that contributes to its exceptional mechanical properties. The typical chemical composition of AMS 6257 includes:

Carbon (C): Approximately 0.38-0.43%

Manganese (Mn): About 0.60-0.80%

Silicon (Si): Around 0.15-0.30%

Phosphorus (P): Maximum 0.035%

Sulfur (S): Maximum 0.040%

Nickel (Ni): Approximately 1.65-2.00%

Chromium (Cr): Approximately 0.70-0.90%

Molybdenum (Mo): Approximately 0.20-0.30%

Copper (Cu): Maximum 0.35%

These alloying elements impart specific characteristics to the steel. For instance, nickel and chromium enhance hardenability and corrosion resistance, while molybdenum contributes to improved strength and toughness. The careful balance of these elements in AMS 6257 results in a steel with remarkable mechanical and metallurgical properties.

Production Process of 4340M Bar & Forging

The production process of AMS 6257 (4340M) bars and forgings involves several key steps:

Melting: High-quality raw materials, including iron, carbon, and alloying elements like nickel, chromium, and molybdenum, are melted in an electric arc furnace to achieve the desired chemical composition.

Casting: The molten steel is cast into large ingots or billets, which are subsequently hot rolled into various forms, such as round bars or rectangular blocks.

Heat Treatment: Heat treatment processes like annealing, normalizing, and quenching and tempering are applied to refine the microstructure and enhance the mechanical properties of the material. These processes are crucial for achieving the desired strength and toughness levels.

Forging: The steel is then forged into specific shapes, such as round bars, using precision techniques. Forging helps align the grain structure and further enhances mechanical properties.

Machining and Finishing: After forging, the material may undergo machining to achieve tight tolerances and surface finishes as required for its intended applications.

The production process is closely monitored to ensure that the material meets AMS 6257 specifications and aerospace industry standards for quality and performance.

Distinguishing Features and Physical Properties

AMS 6257 (4340M) is known for its distinguishing features and exceptional physical properties, which make it highly suitable for demanding applications:

High Strength: It exhibits excellent tensile strength, making it suitable for load-bearing components in aerospace and other industries.

Toughness: 4340M steel possesses exceptional impact toughness, making it resilient in high-stress situations and applications subject to shock loading.

Fatigue Resistance: Its fatigue resistance is crucial for parts subjected to cyclic loading, such as aircraft landing gear components.

Hardness: AMS 6257 can be heat-treated to achieve high surface hardness, enhancing wear resistance.

Corrosion Resistance: The alloy’s nickel and chromium content imparts good corrosion resistance, especially when compared to plain carbon steels.

Weldability: It is weldable, allowing for the fabrication of complex structures and assemblies.

Machinability: While not as easy to machine as low-carbon steels, it is still considered machinable with the appropriate tooling and techniques.

These physical properties and features combine to make AMS 6257 (4340M) a versatile and reliable material for critical aerospace and industrial applications, where both strength and toughness are paramount. Its wide use underscores its reputation as a high-performance alloy steel grade.

Mechanical Characteristics of AMS 6257

AMS 6257 (4340M) exhibits a range of mechanical characteristics that make it a preferred material in various industries:

Tensile Strength: This steel grade typically offers a tensile strength in the range of 145,000 to 160,000 psi (pounds per square inch), depending on the heat treatment. This high tensile strength makes it ideal for applications where structural integrity under heavy loads is essential.

Yield Strength: The yield strength of AMS 6257 is approximately 100,000 psi, indicating the point at which the material starts to deform plastically. This characteristic is crucial for determining the material’s load-bearing capacity.

Impact Toughness: One of the standout features of AMS 6257 is its exceptional impact toughness. It can withstand high-impact loads without fracturing, making it suitable for applications exposed to shock loading, such as aircraft landing gear and transmission components.

Fatigue Resistance: The steel offers excellent fatigue resistance, which is crucial for components subjected to cyclic loading. This property ensures that the material can withstand repeated stress without failure, enhancing its longevity.

Hardness: AMS 6257 can be heat-treated to achieve various levels of hardness. For example, it can reach a Rockwell C hardness of 40-45 HRC (Hardness Rockwell C) in the quenched and tempered condition, enhancing its wear resistance.

These mechanical characteristics, coupled with its alloy composition, contribute to the material’s versatility and suitability for a wide range of applications.

Applications in the Aerospace Industry

AMS 6257 (4340M) finds extensive use in the aerospace industry due to its exceptional mechanical properties and reliability. Some key applications in aerospace include:

Aircraft Landing Gear: The high strength, toughness, and fatigue resistance of 4340M make it ideal for manufacturing landing gear components, which must withstand the impact forces of takeoffs and landings.

Aircraft Engine Components: Critical engine components like crankshafts, connecting rods, and gears benefit from the high strength and fatigue resistance of this steel.

Structural Components: In the construction of airframes and fuselages, AMS 6257 is used for structural elements where both strength and weight considerations are critical.

Fasteners: The steel’s strength and durability make it suitable for aerospace fasteners, ensuring the structural integrity of various components.

Uses in Military and Defense Equipment

In the military and defense sectors, AMS 6257 plays a vital role in the production of various equipment and components:

Armored Vehicles: The steel is used in the construction of armored vehicles and personnel carriers due to its toughness and ballistic resistance.

Weapon Systems: Components of various weapon systems, including firearms, artillery, and munitions, benefit from the high strength and durability of this steel.

Aircraft and Helicopters: Similar to its use in commercial aerospace, AMS 6257 is utilized in military aircraft and helicopter components, particularly in areas where strength, durability, and weight savings are paramount.

Naval Applications: In naval vessels, this steel is employed for components that require resistance to impact and corrosion, such as ship shafts and propeller hubs.

4340M in the Automotive Sector

AMS 6257 (4340M) also has applications in the automotive sector, particularly in high-performance and heavy-duty vehicles:

Racing and Sports Cars: High-performance and racing cars often use 4340M steel for critical engine components like crankshafts and connecting rods, where its high strength-to-weight ratio is advantageous.

Truck and Commercial Vehicle Components: Heavy-duty trucks and commercial vehicles benefit from the toughness and durability of this steel in components such as axles, drive shafts, and transmission gears.

Off-Road Vehicles: In off-road and construction equipment, AMS 6257 is used in various load-bearing and high-stress components that require robust materials.

Motorcycle Components: Some motorcycle manufacturers use this steel in critical engine and transmission components to improve strength and reliability.

In the automotive sector, the material’s ability to withstand high loads and harsh operating conditions makes it a preferred choice for performance and heavy-duty applications, where safety and durability are paramount.

Benefits of Using AMS 6257 Over Other Alloys

AMS 6257 (4340M) offers several advantages over other alloys, making it a preferred choice in many applications:

High Strength-to-Weight Ratio: Its high tensile strength combined with relatively low density provides an excellent strength-to-weight ratio, which is advantageous in aerospace, automotive, and other weight-sensitive industries.

Exceptional Toughness: The outstanding impact toughness and fatigue resistance make it ideal for applications subjected to shock loads and cyclic stresses, outperforming many other materials.

Versatility: Its versatility arises from the ability to customize its properties through heat treatment. This adaptability allows engineers to tailor the material to meet specific application requirements.

Corrosion Resistance: While not as corrosion-resistant as stainless steel, AMS 6257 exhibits good resistance to atmospheric and mild chemical corrosion, making it suitable for various environments.

Cost-Effective: In comparison to some specialized alloys, AMS 6257 offers an excellent balance between performance and cost, making it an attractive choice for many industries.

Weldability: Its weldability enables the fabrication of complex structures and assemblies, offering design flexibility.

Testing and Quality Assurance Measures

To ensure that AMS 6257 (4340M) meets the rigorous standards required by aerospace, defense, automotive, and other industries, a comprehensive set of testing and quality assurance measures are implemented:

Chemical Analysis: Precise chemical composition analysis is performed to confirm that the material meets specifications.

Mechanical Testing: Tensile testing, impact testing, and hardness testing are conducted to verify the material’s mechanical properties and adherence to specified limits.

Non-Destructive Testing (NDT): Techniques like ultrasonic testing and magnetic particle inspection are used to detect internal defects without damaging the material.

Heat Treatment Validation: The heat treatment processes are closely monitored to ensure the correct microstructure and mechanical properties are achieved.

Metallurgical Examination: Microstructure analysis is performed to assess grain size and distribution, which can impact mechanical properties.

Quality Documentation: Detailed documentation is provided to demonstrate compliance with industry standards and customer requirements.

These measures are essential for guaranteeing the reliability and safety of components made from AMS 6257.

Safety Considerations in Handling and Machining

Working with AMS 6257 (4340M) involves safety considerations, especially during machining and fabrication:

Heat Treatment Safety: The heat treatment processes involve high temperatures, so appropriate safety measures, such as protective gear and well-ventilated workspaces, must be in place to prevent accidents and exposure to harmful fumes.

Machining Safety: The hardness of this alloy can make machining challenging. Proper tooling, coolant, and machining techniques are essential to prevent tool wear and overheating.

Welding Safety: When welding, adequate ventilation and protective equipment are necessary to protect against fumes and UV radiation. Welding operators should be trained and qualified for the specific application.

Material Handling: Due to its weight and density, safe material handling practices are crucial to prevent injuries and material damage.

Quality Control: Rigorous quality control measures should be in place to ensure that components meet required specifications and safety standards.

Conclusion: The Future Potential of AMS 6257 (4340M) in Advanced Applications

AMS 6257 (4340M) has established itself as a reliable and versatile material in aerospace, defense, automotive, and other industries. Its combination of high strength, exceptional toughness, and customization options positions it for continued success in advanced applications.

As technology evolves and industries demand materials that can withstand more extreme conditions and reduce weight, the future potential of AMS 6257 remains promising. Innovations in heat treatment techniques, alloy formulations, and machining technologies will likely expand its application range further.

However, it’s essential to maintain a focus on safety, quality assurance, and adherence to industry standards when working with AMS 6257 to ensure the continued success and growth of this high-performance alloy in various advanced applications.
